Card

Seamless View

The Seamless View purchase scenario represents the opportunity to implement card payments directly in your webshop.

Introduction

Seamless View provides an integration of the payment process directly on your website. This solution offers a smooth shopping experience with Swedbank Pay payment pages seamlessly integrated in an iframe on your website. The payer does not need to leave your webpage, since we are handling the payment in the iframe on your page.

How It Looks

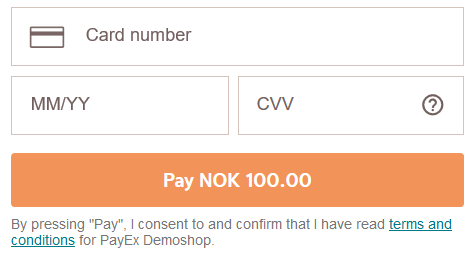

screenshot of the seamless view card payment page

For payments in the currency SEK, radio buttons for selecting debit or credit card will appear.

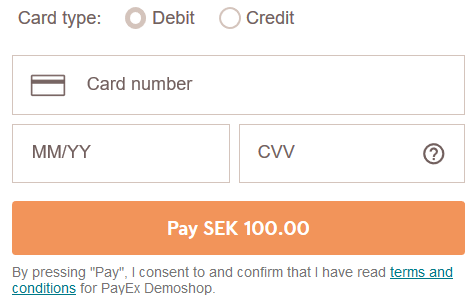

screenshot of the swedish seamless view card payment page

Step 1: Create Payment

A Purchase payment is a straightforward way to charge the card of the payer. It is followed up by posting a capture, cancellation or reversal transaction.

An example of an abbreviated POST request is provided below. Each individual field of the JSON document is described in the following section. An example of an expanded POST request is available in the other features section.

To minimize the risk for a challenge request (Strong Customer Authentication – “SCA”) on card payments, it’s recommended that you add as much data as possible to the riskIndicator object in the request below.

When properly set up in your merchant/webshop site and the payer starts the purchase process, you need to make a POST request towards Swedbank Pay with your Purchase information. This will generate a payment object with a unique paymentID. You will receive a JavaScript source in response.

GDPR: GDPR sensitive data such as email, phone numbers and social security numbers must not be used directly in request fields such as payerReference. If it is necessary to use GDPR sensitive data, it must be hashed and then the hash can be used in requests towards Swedbank Pay.

Purchase

A Purchase payment is a straightforward way to charge the card of the payer. It is followed up by posting a capture, cancellation or reversal transaction. An example of a request is provided below. Each individual field of the JSON document is described in the following section.

Purchase Operation

Posting a payment (operation Purchase) returns the options of aborting the payment altogether or creating an authorization transaction through the view-authorization hyperlink, or view-payment.

Request



1
2
3
4
5



{
    "payment": {
        "operation": "Purchase"
    }
}

Card Payment Request

Request



1
2
3



POST /psp/creditcard/payments HTTP/1.1
Authorization: Bearer <AccessToken>
Content-Type: application/json





1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72



{
    "payment": {
        "operation": "Purchase",
        "intent": "Authorization",
        "currency": "SEK",
        "prices": [{
                "type": "CreditCard",
                "amount": 1500,
                "vatAmount": 0
            }
        ],
        "description": "Test Purchase",
        "userAgent": "Mozilla/5.0...",
        "language": "sv-SE",
        "urls": {
            "hostUrls": ["https://example.com"],
            "completeUrl": "https://example.com/payment-completed",
            "cancelUrl": "https://example.com/payment-cancelled",
            "paymentUrl": "https://example.com/perform-payment",
            "callbackUrl": "https://example.com/payment-callback",
            "logoUrl": "https://example.com/payment-logo.png",
            "termsOfServiceUrl": "https://example.com/payment-terms.pdf",
        },
        "payeeInfo": {
            "payeeId": "5cabf558-5283-482f-b252-4d58e06f6f3b",
            "payeeReference": "CD1234",
            "payeeName": "Merchant1",
            "productCategory": "A123",
            "orderReference": "or123",
            "subsite": "mySubsite"
        },
        "payer": {
            "payerReference": "AB1234",
        },
        "cardholder": {
            "firstName": "Olivia",
            "lastName": "Nyhuus",
            "email": "olivia.nyhuus@swedbankpay.com",
            "msisdn": "+4798765432",
            "homePhoneNumber": "+4787654321",
            "workPhoneNumber": "+4776543210",
            "shippingAddress": {
                "firstName": "Olivia",
                "lastName": "Nyhuus",
                "email": "olivia.nyhuus@swedbankpay.com",
                "msisdn": "+4798765432",
                "streetAddress": "Saltnestoppen 43",
                "coAddress": "",
                "city": "Saltnes",
                "zipCode": "1642",
                "countryCode": "NO"
            },
        },
        "riskIndicator": {
            "deliveryEmailAddress": "olivia.nyhuus@swedbankpay.com",
            "deliveryTimeFrameIndicator": "01",
            "preOrderDate": "19801231",
            "preOrderPurchaseIndicator": "01",
            "shipIndicator": "01",
            "giftCardPurchase": false,
            "reOrderPurchaseIndicator": "01",
            "pickUpAddress": {
                "name": "Olivia Nyhuus",
                "streetAddress": "Saltnestoppen 43",
                "coAddress": "",
                "city": "Saltnes",
                "zipCode": "1642",
                "countryCode": "NO"
            }
        }
    }
}

| Required | Field | Type | Description | | :————–: | :——————————– | :———— | :—————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————- | | check | payment | object | The payment object | | check | operation | string | Determines the initial operation, defining the type of payment order created. Possible options are Purchase, Abort Verify, UnscheduledPurchase, Recur and Payout. | | check | intent | string | Authorization. Reserves the amount, and is followed by a Cancel or Capture of funds.

AutoCapture. A one phase option that enables the Capture of funds automatically after authorization. | | | paymentToken | string | If a paymentToken is included in the request, the card details stored in the paymentToken will be prefilled on the payment page. The payer still has to enter the cvc to complete the purchase. This is called a “One Click” purchase. | | check | currency | string | NOK, SEK, DKK, USD or EUR. | | check | prices | array | The prices resource lists the prices related to a specific payment. | | check | type | string | Use the value ``.See the prices resource for more information. | | check | amount | integer | The transaction amount (including VAT, if any) entered in the lowest monetary unit of the selected currency. E.g.: 10000 = 100.00 SEK, 5000 = 50.00 SEK. | | check | vatAmount | integer | The payment’s VAT (Value Added Tax) amount, entered in the lowest monetary unit of the selected currency. E.g.: 10000 = 100.00 SEK, 5000 = 50.00 SEK. The vatAmount entered will not affect the amount shown on the payment page, which only shows the total amount. This field is used to specify how much of the total amount the VAT will be. Set to 0 (zero) if there is no VAT amount charged. | | check | description | string(40) | A textual description of the purchase. Maximum length is 40 characters. | | | generatePaymentToken | boolean | true or false. Set this to true if you want to create a paymentToken for future use as One Click. | | | generateRecurrenceToken | boolean | true or false. Set this to true if you want to create a recurrenceToken for future use Recurring purchases (subscription payments). | | check | userAgent | string | The user agent of the payer. Should typically be set to the value of the User-Agent header sent by the payer’s web browser. | | check | language | string | sv-SE, nb-NO, da-DK, de-DE, ee-EE, en-US, es-ES, fr-FR, lv-LV, lt-LT, ru-RU or fi-FI. | | check︎ | urls | object | The object containing URLs relevant for the payment. | | check︎ | hostUrls | array | The array of valid host URLs. | | check | completeUrl | string | The URL that Swedbank Pay will redirect back to when the payer has completed their interactions with the payment. This does not indicate a successful payment, only that it has reached a final (complete) state. A GET request needs to be performed on the payment to inspect it further. See completeUrl for details. | | check | cancelUrl | string | The URL to redirect the payer to if the payment is cancelled. Only used in redirect scenarios. Can not be used simultaneously with paymentUrl; only cancelUrl or paymentUrl can be used, not both. | | | paymentUrl | string | The paymentUrl represents the URL that Swedbank Pay will redirect back to when the view-operation needs to be loaded, to inspect and act on the current status of the payment, such as when the payer is redirected out of the Seamless View (the <iframe>) and sent back after completing the payment. paymentUrl is only used in Seamless Views and should point to the page of where the Payment Order Seamless View is hosted. If both cancelUrl and paymentUrl is sent, the paymentUrl will used. | | | callbackUrl | string | The URL that Swedbank Pay will perform an HTTP POST against every time a transaction is created on the payment. See callback for details. | | | logoUrl | string | The URL that will be used for showing the customer logo. It must be a picture with maximum 50px height and 400px width. HTTPS is required. | | | termsOfServiceUrl | string | The URL to the terms of service document which the payer must accept in order to complete the payment. HTTPS is a requirement. | | check | payeeInfo | object | The payeeInfo object, containing information about the payee (the recipient of the money). See payeeInfo for details. | | check | payeeId | string | This is the unique id that identifies this payee (like merchant) set by Swedbank Pay. | | check | payeeReference | string(30) | A unique reference from the merchant system. Set per operation to ensure an exactly-once delivery of a transactional operation. Length and content validation depends on whether the transaction.number or the payeeReference is sent to the acquirer. If Swedbank Pay handles the settlement, the transaction.number is sent to the acquirer and the payeeReference must be in the format of A-Za-z0-9 and string(50). If you handle the settlement, Swedbank Pay will send the payeeReference and it will be limited to the format of string(12). All characters must be digits. | | | payeeName | string | The payee name (like merchant name) that will be displayed when redirected to Swedbank Pay. | | | productCategory | string(50) | A product category or number sent in from the payee/merchant. This is not validated by Swedbank Pay, but will be passed through the payment process and may be used in the settlement process. | | | orderReference | string(50) | The order reference should reflect the order reference found in the merchant’s systems. | | | subsite | string(40) | The subsite field can be used to perform a split settlement on the payment. The different subsite values must be resolved with Swedbank Pay reconciliation before being used. If you send in an unknown subsite value, it will be ignored and the payment will be settled using the merchant’s default settlement account. Must be in the format of A-Za-z0-9. | | | payer | string | The payer object, containing information about the payer. | | | payerReference | string | The reference to the payer from the merchant system, like e-mail address, mobile number, customer number etc. Mandatory if generateRecurrenceToken, RecurrenceToken, generatePaymentToken or paymentToken is true. | | | metadata | object | A unique reference from the merchant system. Set per operation to ensure an exactly-once delivery of a transactional operation. Length and content validation depends on whether the transaction.number or the payeeReference is sent to the acquirer. If Swedbank Pay handles the settlement, the transaction.number is sent to the acquirer and the payeeReference must be in the format of A-Za-z0-9 and string(50). If you handle the settlement, Swedbank Pay will send the payeeReference and it will be limited to the format of string(12). All characters must be digits. | | | cardholder | object | Optional. Cardholder object that can hold information about a buyer (private or company). The information added increases the chance for frictionless flow and is related to 3-D Secure 2.0.. | | | firstName | string | Optional (increased chance for frictionless flow if set). If buyer is a company, use only firstName. | | | lastName | string | Optional (increased chance for frictionless flow if set). If buyer is a company, use only firstName. | | | email | string | Optional (increased chance for frictionless flow if set) | | | msisdn | string | Optional (increased chance for frictionless flow if set) | | | homePhoneNumber | string | Optional (increased chance for frictionless flow if set) | | | workPhoneNumber | string | Optional (increased chance for frictionless flow if set) | | | shippingAddress | object | Optional (increased chance for frictionless flow if set) | | | firstName | string | Optional (increased chance for frictionless flow if set) | | | lastName | string | Optional (increased chance for frictionless flow if set) | | | email | string | Optional (increased chance for frictionless flow if set) | | | msisdn | string | Optional (increased chance for frictionless flow if set) | | | streetAddress | string | Optional (increased chance for frictionless flow if set) | | | coAddress | string | Optional (increased chance for frictionless flow if set) | | | city | string | Optional (increased chance for frictionless flow if set) | | | zipCode | string | Optional (increased chance for frictionless flow if set) | | | countryCode | string | Optional (increased chance for frictionless flow if set) | | | billingAddress | object | Optional (increased chance for frictionless flow if set) | | | firstName | string | Optional (increased chance for frictionless flow if set). If buyer is a company, use only firstName. | | | lastName | string | Optional (increased chance for frictionless flow if set). If buyer is a company, use only firstName. | | | email | string | Optional (increased chance for frictionless flow if set) | | | msisdn | string | Optional (increased chance for frictionless flow if set) | | | streetAddress | string | Optional (increased chance for frictionless flow if set) | | | coAddress | string | Optional (increased chance for frictionless flow if set) | | | city | string | Optional (increased chance for frictionless flow if set) | | | zipCode | string | Optional (increased chance for frictionless flow if set) | | | countryCode | string | Optional (increased chance for frictionless flow if set) |

riskIndicator array
This **optional** object consist of information that helps verifying the payer. Providing these fields decreases the likelihood of having to prompt for 3-D Secure 2.0 authentication of the payer when they are authenticating the purchase.
deliveryEmailAdress string
For electronic delivery, the email address to which the merchandise was delivered. Providing this field when appropriate decreases the likelihood of a 3-D Secure authentication for the payer.
deliveryTimeFrameIndicator string
Indicates the merchandise delivery timeframe.
`01` (Electronic Delivery)
`02` (Same day shipping)
`03` (Overnight shipping)
`04` (Two-day or more shipping)
preOrderDate string
For a pre-ordered purchase. The expected date that the merchandise will be available. Format: `YYYYMMDD`
preOrderPurchaseIndicator string
Indicates whether the payer is placing an order for merchandise with a future availability or release date.
`01` (Merchandise available)
`02` (Future availability)
shipIndicator string
Indicates shipping method chosen for the transaction.
`01` (Ship to cardholder's billing address)
`02` (Ship to another verified address on file with merchant)
`03` (Ship to address that is different than cardholder's billing address)
`04` (Ship to Store / Pick-up at local store. Store address shall be populated in shipping address fields)
`05` (Digital goods, includes online services, electronic giftcards and redemption codes)
`06` (Travel and Event tickets, not shipped)
`07` (Other, e.g. gaming, digital service)
giftCardPurchase bool
`true` if this is a purchase of a gift card.
reOrderPurchaseIndicator string
Indicates whether the cardholder is reordering previously purchased merchandise.
`01` (First time ordered)
`02` (Reordered).
pickUpAddress object
If `shipIndicator` set to `04`, then prefill this with the payers `pickUpAddress` of the purchase to decrease the risk factor of the purchase.
name string
If `shipIndicator` set to `04`, then prefill this with the payers `name` of the purchase to decrease the risk factor of the purchase.
streetAddress string
If `shipIndicator` set to `04`, then prefill this with the payers `streetAddress` of the purchase to decrease the risk factor of the purchase. Maximum 50 characters long.
coAddress string
If `shipIndicator` set to `04`, then prefill this with the payers `coAddress` of the purchase to decrease the risk factor of the purchase.
city string
If `shipIndicator` set to `04`, then prefill this with the payers `city` of the purchase to decrease the risk factor of the purchase.
zipCode string
If `shipIndicator` set to `04`, then prefill this with the payers `zipCode` of the purchase to decrease the risk factor of the purchase.
countryCode string
If `shipIndicator` set to `04`, then prefill this with the payers `countryCode` of the purchase to decrease the risk factor of the purchase.

Card Payment Response

Response



1
2



HTTP/1.1 200 OK
Content-Type: application/json





1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63



{
    "payment": {
        "id": "/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1",
        "number": 1234567890,
        "instrument": "CreditCard",
        "created": "2016-09-14T13:21:29.3182115Z",
        "updated": "2016-09-14T13:21:57.6627579Z",
        "state": "Ready",
        "operation": "Purchase",
        "intent": "Authorization",
        "currency": "SEK",
        "amount": 0,
        "remainingCaptureAmount": 1500,
        "remainingCancellationAmount": 1500,
        "remainingReversalAmount": 0,
        "description": "Test Purchase",
        "initiatingSystemUserAgent": "swedbankpay-sdk-dotnet/3.0.1",
        "userAgent": "Mozilla/5.0...",
        "language": "sv-SE",
        "prices": { "id": "/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1/prices" },
        "transactions": { "id": "/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1/transactions" },
        "authorizations": { "id": "/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1/authorizations" },
        "captures": { "id": "/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1/captures" },
        "reversals": { "id": "/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1/reversals" },
        "cancellations": { "id": "/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1/cancellations" },
        "urls": { "id": "/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1/urls" },
        "payeeInfo": { "id": "/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1/payeeInfo" },
        "payers": { "id": "/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1/payers" },
        "settings": { "id": "/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1/settings" }
    },
    "operations": [
        {
            "rel": "update-payment-abort",
            "href": "https://api.externalintegration.payex.com/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1",
            "method": "PATCH",
            "contentType": "application/json"
        },
        {
            "rel": "redirect-authorization",
            "href": "https://ecom.externalintegration.payex.com/creditcard/payments/authorize/5a17c24e-d459-4567-bbad-aa0f17a76119",
            "method": "GET",
            "contentType": "text/html"
        },
        {
            "rel": "view-authorization",
            "href": "https://ecom.externalintegration.payex.com/creditcard/core/scripts/client/px.creditcard.client.js?token=5a17c24e-d459-4567-bbad-aa0f17a76119",
            "method": "GET",
            "contentType": "application/javascript"
        },
        {
            "rel": "view-payment",
            "href": "https://ecom.externalintegration.payex.com/creditcard/core/scripts/client/px.creditcard.client.js?token=5a17c24e-d459-4567-bbad-aa0f17a76119",
            "method": "GET",
            "contentType": "application/javascript"
        },
        {
            "rel": "direct-authorization",
            "href": "https://api.externalintegration.payex.com/psp/creditcard/confined/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1/authorizations",
            "method": "POST",
            "contentType": "application/json"
        }
    ]
}
Field Type Description
payment object The payment object contains information about the specific payment.
id string The relative URL and unique identifier of the payment resource . Please read about URL Usage to understand how this and other URLs should be used in your solution.
number integer The payment number, useful when there’s need to reference the payment in human communication. Not usable for programmatic identification of the payment, where id should be used instead.
created string The ISO-8601 date of when the payment was created.
updated string The ISO-8601 date of when the payment was updated.
state string Ready, Pending, Failed or Aborted. Indicates the state of the payment, not the state of any transactions performed on the payment. To find the state of the payment’s transactions (such as a successful authorization), see the transactions resource or the different specialized type-specific resources such as authorizations or sales.
prices object The prices resource lists the prices related to a specific payment.
id string The relative URL and unique identifier of the prices resource . Please read about URL Usage to understand how this and other URLs should be used in your solution.
amount integer The transaction amount (including VAT, if any) entered in the lowest monetary unit of the selected currency. E.g.: 10000 = 100.00 SEK, 5000 = 50.00 SEK.
remainingCaptureAmount integer The available amount to capture.
remainingCancelAmount integer The available amount to cancel.
remainingReversalAmount integer The available amount to reverse.
description string(40) A textual description of the purchase. Maximum length is 40 characters.
userAgent string The user agent of the payer. Should typically be set to the value of the User-Agent header sent by the payer’s web browser.
language string sv-SE, nb-NO, da-DK, de-DE, ee-EE, en-US, es-ES, fr-FR, lv-LV, lt-LT, ru-RU or fi-FI.
urls string The URL to the urls resource where all URLs related to the payment can be retrieved.
payeeInfo object The payeeInfo object, containing information about the payee (the recipient of the money). See payeeInfo for details.
payers string The URL to the payer resource where the information about the payer can be retrieved.
operations array The array of operations that are possible to perform on the payment in its current state.
method string The HTTP method to use when performing the operation.
href string The target URL to perform the operation against.
rel string The name of the relation the operation has to the current resource.

The key information in the response is the view-authorization operation. You will need to embed its href in a <script> element. The script will enable loading the payment page in an iframe in our next step.

Please note that nested iframes (an iframe within an iframe) are unsupported.

Step 2: Display The Payment

You need to embed the script source on your site to create a Seamless View in an iframe; so that the payer can enter the credit card details in a secure Swedbank Pay hosted environment. A simplified integration has these following steps:

  1. Create a container that will contain the Seamless View iframe: <div id="swedbank-pay-seamless-view-page">.
  2. Create a <script> source within the container. Embed the href value obtained in the POST request in the <script> element. Example:


1



    <script id="payment-page-script" src="https://ecom.externalintegration.payex.com/creditcard/core/ scripts/client/px.creditcard.client.js"></script>

The previous two steps gives this HTML:

HTML



1
2
3
4
5
6
7
8
9
10
11
12
13



<!DOCTYPE html>
<html>
    <head>
        <title>Swedbank Pay Seamless View is Awesome!</title>
        <!-- Here you can specify your own javascript file -->
        <script src=<YourJavaScriptFileHere>></script>
    </head>
    <body>
        <div id="swedbank-pay-seamless-view-page">
          <script id="payment-page-script" src="https://ecom.dev.payex.com/creditcard/core/scripts/client/px.creditcard.client.js"></script>
        </div>
    </body>
</html>

Load The Seamless View

Lastly, initiate the Seamless View with a JavaScript call to open the iframe embedded on your website.

JavaScript



1
2
3
4
5
6
7



<script language="javascript">
    payex.hostedView.creditCard({
        // The container specifies which id the script will look for to host the
        // iframe component.
        container: "swedbank-pay-seamless-view-page"
    }).open();
</script>

Monitoring The Script URL

If you choose to stay with Seamless View, please take the following under advisement.

To ensure compliance, we recommend implementing Content Security Policy rules to monitor and authorize scripts.

Merchants must whitelist the following domains to restrict browser content retrieval to approved sources. While https://.payex.com and https://.swedbankpay.com cover most payment methods, digital wallets such as Apple Pay, Click to Pay, and Google Pay are delivered via Payair. Alongside the Payair URL, these wallets may also generate URLs from Apple, Google, MasterCard, and Visa. See the table below for more information.

When it comes to ACS URLs, nothing is loaded from the ACS domain in the merchant’s end. It will either happen within Swedbank Pay’s domain or as a redirect, which will repeal the merchant’s CSP.

The list below includes important URLs, but may not be exhaustive. Merchants need to stay up to date in case of URL changes, or if you need to whitelist URLs not listed here.

For further details, refer to section 4.6.3 and 11.6.1 in this PCI-DSS document.

URL Description
https://*.cdn-apple.com URL needed for Apple Pay.
https://*.google.com URL needed for Google Pay.
https://*.gstatic.com Domain used by Google that hosts images, CSS, and javascript code to reduce bandwidth usage online.
https://*.mastercard.com URL needed for Click to Pay.
https://*.payair.com URL for the digital wallets Apple Pay, Click to Pay and Google Pay.
https://*.payex.com Universal URL for all payment methods except the digital wallets Apple Pay, Click to Pay and Google Pay.
https://*.swedbankpay.com Universal URL for all payment methods except the digital wallets Apple Pay, Click to Pay and Google Pay.
https://*.visa.com URL needed for Click to Pay.

Events

When a user actively attempts to perform a payment, the onPaymentCreated event is raised with the following event argument object:

onPaymentCreated event object

onPaymentCreated event object



1
2



HTTP/1.1 200 OK
Content-Type: application/json





1
2
3
4



{
    "id": "/psp/creditcard/payments/7e6cdfc3-1276-44e9-9992-7cf4419750e1",
    "instrument": "creditcard",
}
Field Type Description
id string The relative URL and unique identifier of the payment resource . Please read about URL Usage to understand how this and other URLs should be used in your solution.
instrument string creditcard

Sequence Diagram

sequenceDiagram
    participant Payer
    participant Merchant
    participant SwedbankPay as Swedbank Pay

    activate Payer
    Payer->>-Merchant: Start purchase
    activate Merchant
    note left of Payer: First API request
    Merchant->>-SwedbankPay: POST /psp/creditcard/payments
    activate SwedbankPay
    SwedbankPay-->>-Merchant: rel: view-authorization ①
    activate Merchant
    Merchant-->>-Payer: Authorization page
    activate Payer
    note left of Payer: Open iframe ②
    Payer->>Payer: Input creditcard information
    Payer->>-SwedbankPay: Show Consumer UI page in iframe - Authorization ③
    activate SwedbankPay

        opt If 3-D Secure is required
        SwedbankPay-->>-Payer: Redirect to IssuingBank
        activate Payer
        Payer->>IssuingBank: 3-D Secure authentication process
        activate IssuingBank
        IssuingBank-->>-Payer: 3-D Secure authentication process response
        Payer->>-IssuingBank: Access authentication page
        activate IssuingBank
        IssuingBank -->>+Payer: Redirect to PaymentUrl
        Payer->>-Merchant: Redirect back to PaymentUrl (merchant)
        end

        alt Callback is set
        activate SwedbankPay
        SwedbankPay->>SwedbankPay: Payment is updated
        SwedbankPay->>-Merchant: POST Payment Callback
        end

    SwedbankPay-->>Merchant: Event: OnPaymentComplete ④
    activate Merchant
    note left of Merchant: Second API request.
    Merchant->>-SwedbankPay: GET <payment.id>
    activate SwedbankPay
    SwedbankPay-->>-Merchant: rel: view-payment
    activate Merchant
    Merchant-->>-Payer: Display purchase result
    activate Payer

3-D Secure

No 3-D Secure and card acceptance: There are optional parameters which can be used in relation to 3-D Secure and card acceptance. Most acquiring agreements will demand that you use 3-D Secure for card holder authentication. However, if your agreement allows you to make a card payment without this authentication, or that specific cards can be declined, you may adjust these optional parameters when posting in the payment.

Swedbank Pay will handle 3-D Secure authentication when this is required. When dealing with credit card payments, 3-D Secure authentication of the cardholder is an essential topic. There are two alternative outcomes of a credit card payment:

  1. 3-D Secure enabled - by default, 3-D Secure should be enabled, and Swedbank Pay will check if the card is enrolled with 3-D Secure. This depends on the issuer of the card. If the card is not enrolled with 3-D Secure, no authentication of the cardholder is done.
  2. Card supports 3-D Secure - if the card is enrolled with 3-D Secure, Swedbank Pay will redirect the cardholder to the autentication mechanism that is decided by the issuing bank. Normally this will be done using BankID or Mobile BankID.

Explanations

  • ① rel: view-authorization is a value in one of the operations, sent as a response from Swedbank Pay to the Merchant.
  • ② Open iframe creates the Swedbank Pay hosted iframe.
  • ③ Show Payer UI page in iframe displays the payment window as content inside of the iframe. The payer can enter card information for authorization.
  • ④ Event: OnPaymentComplete is when a payment is complete. Please note that both successful and rejected payments reach completion, in contrast to a cancelled payment.
